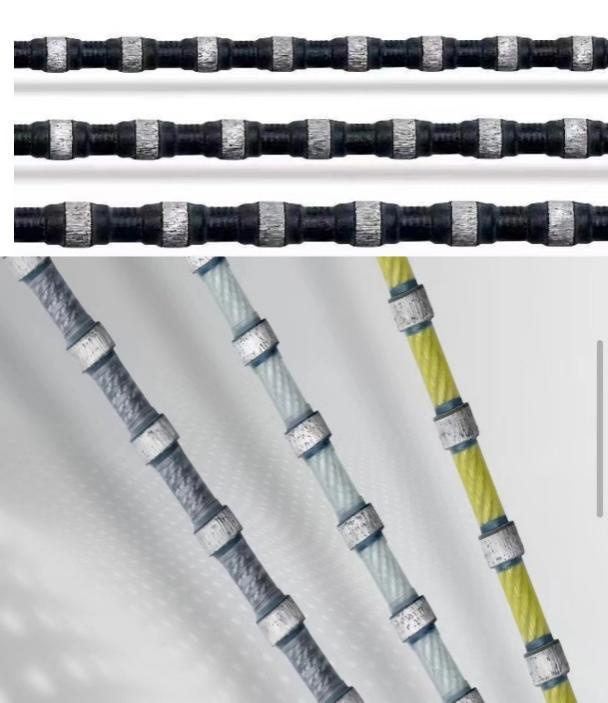

Granite Single Rope and Composite Rope
Product presentation
Granite single set of rope saw parameters and specifications:
|
Specification (mm) |
Beads/m |
Reinforcement |
Function |
| Φ8.3 | 37 | P | Prorfiling |
| Φ8.8 | 37 | P | Prorfiling |
| Φ10.5 | 37 | P | Squaring |
| Φ11 | 37 | P/P+S | Squaring |
| Φ11.5 | 37 | P/P+S | Squaring |
| Note: P represents Plastic/R represents Rubber/ S represents Spring | |||
| Note: P injection represents Plastic/R Rubber represents Rubber/ S Spring represents Spring | |||

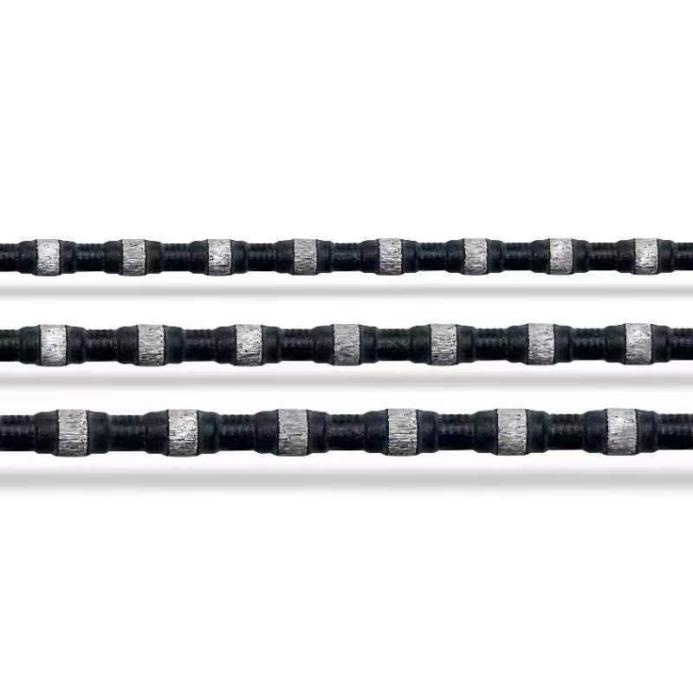

Parameters and specifications of steel concrete rope saw:
| Specification(mm) | Beads/m | Reinforcement |
|
Φ10.5 |
40 |
R/R+S |
|
Φ11 |
40 |
R/R+S |
|
Φ11.5 |
40 |
R/R+S |
| Note: P represents Plastic/R represents Rubber S represents Spring |
||

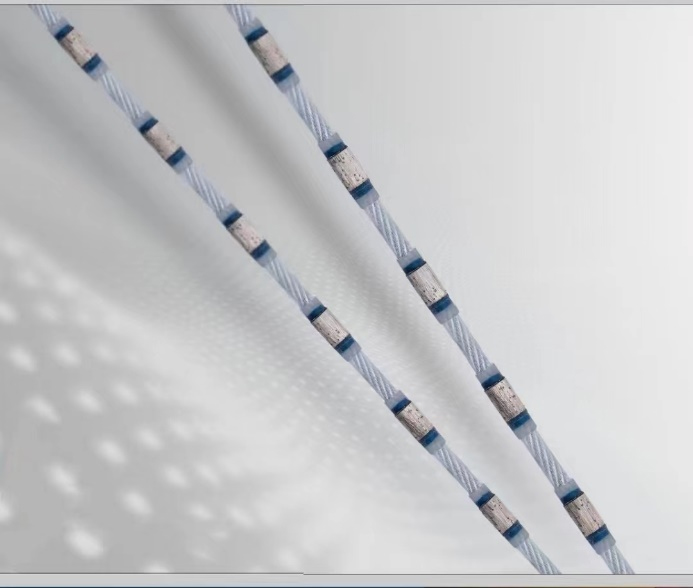

Granite composite rope saw parameters and specifications:
|
Specification(mm) |
Beads/m |
Reinforcement |
|
Φ4.3 |
37 |
P |
|
Φ5.3 |
37 |
P |
|
Φ6.3 |
37 |
P |
|
Φ7.3 |
37 |
P |
|
Φ8.3 |
37 |
P |
| Note:P represents Plastic/R represents Rubber/ S represents Spring | ||
1. Production of raw materials
Imported wire rope, powder and high quality diamond, plastic.
2. Product features:
No waste of raw materials, safety and environmental protection.
3. Application Scope:
Service speed and life of granite single rope saw
|
Cutting Material |
Line Speed （m/s） |
Cutting Speed （㎡/h） |
Wire life （㎡/m） |
|
Low Rigidity Granite |
28-32 |
1.2-1.8 |
18-25 |
|
Mid-hard Granite |
28-32 |
0.8-1.2 |
12-18 |
|
Hard Granite |
28-32 |
0.4-0.6 |
8-12 |
Service speed and life of steel concrete rope saw
|
Cutting Material |
Line Speed （m/s） |
Cutting Speed （㎡/h） |
Wire life （㎡/m） |
|
Normal Wet cutting |
22-25 |
1.2-1.8 |
18-25 |
|
Dry cutting |
18-25 |
0.8-1.2 |
12-18 |
|
Underwater cutting |
15-20 |
0.4-0.6 |
8-12 |
|
Cutting steel structure |
15-25 |
0.03-01 |
0.2-0.5 |
Efficiency and life of the combined rope saw
|
Cutting Material |
Line Speed（m/s） |
Cutting Speed（㎡/h） |
Wire life （㎡/m） |
|
Low Rigidity Granite |
28-32 |
1.2-1.5 |
10-15 |
|
Mid-hard Granite |
28-32 |
0.6-1.2 |
8-10 |
|
Hard Granite |
28-32 |
0.2-0.6 |
3-8 |
